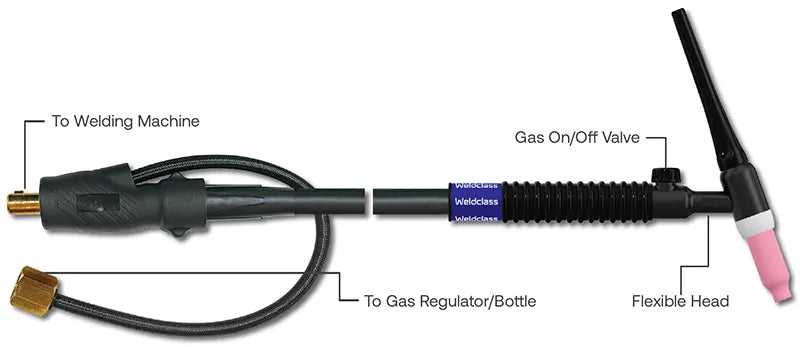

Weldclass TIG Torch with Valve 26FV Series (200 Amp) 8 Metres

PLEASE CONTACT US FOR PRICE AND AVAILABILITY

Expertly crafted in Europe, the Weldclass 26FV Series TIG Torch is equipped with a modern, ergonomic handle featuring a ball joint for effortless handling. Its large "35-50" connectors make it compatible with most standard inverters with a 200A-250A output or higher. The torch head is designed to be flexible, while the valve adds precision and control to your welding technique. Included with the 2-piece cable is a protective cable sheath and a parts kit, as well as tungsten electrodes, ready for immediate use. With a 200 amp maximum capacity, this torch can handle electrodes up to 3.2mm and can weld materials up to 4-5mm in thickness. It is specially designed to be used with standard inverter welding machines that do not require special control-plug or gas hose connections. The gas hose connects directly to the gas regulator on the cylinder, and the gas flow is regulated through the valve on the torch head.

FEATURES

• Made in Europe
• Modern ergonomic Handle with Ball Joint to allow easy handling of the torch
• Fitted with large “35-50” connectors, ready to fit to most standard inverters with output of 200A-250A or more
• Flexible torch head
• Valved style heads for use with most standard inverter welders
• 2-piece style cable with protective cable sheath fitted
• Includes parts kits & tungsten electrodes “ready to weld”
• 8 Metres
• 200 amp max capacity
• Suitable for use with tungsten electrodes up to 3.2mm, and for welding materials up to approx’ 4-5mm thickness
• Designed for fitting to standard inverter welding machines which do NOT have special control-plug or gas hose connections. The gas hose on the TIG torch is connected directly to the gas regulator (on the gas cylinder) and gas flow is controlled via the valve on the TIG torch head.

PARTS FITTED TO THE TORCH

• 1 x 57Y02 Long Back Cap
• 1 x 10N23 1.6mm Collet
• 1 x 10N31 1.6mm Collet Body
• 1 x 10N47 ‘Alumina’ Cup
• 1 x Tungsten Electrode 1.6mm – DC type, Thoriated Red-Tip

ADDITIONAL PARTS SUPPLIED WITH THE TORCH

• 1 x 10N24 2.4mm Collet
• 1 x 10N32 2.4mm Collet Body
• 1 x Tungsten Electrode 2.4mm – DC type, Thoriated Red-Tip

NOTE
Product Images are for illustration purposes only
