Weldclass TIG Torch with Valve 26FV Series (200 Amp) 4 Metres
Weldclass TIG Torch with Valve 26FV Series (200 Amp) 4 Metres
SKU Product Code: TWC-01046
Low stock: 1 left
Share
PLEASE CONTACT US FOR PRICE AND AVAILABILITY

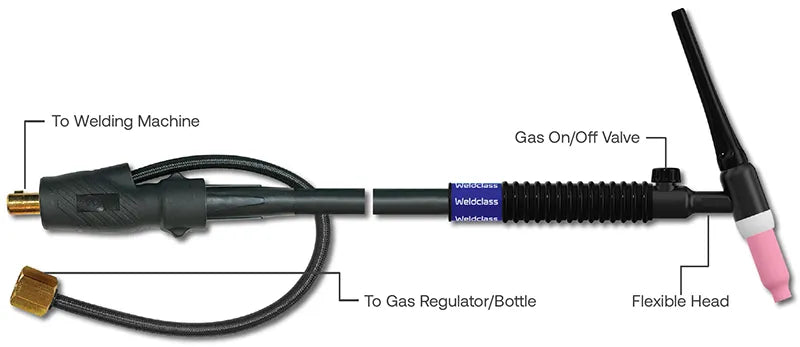

This TIG torch is part of the 26FV Series with a 200 amp capacity and 4 metres of length. Made in Europe, it features a modern ergonomic handle with a ball joint for easy handling and a flexible torch head. The valved style head allows for use with most standard inverter welders and the 2-piece cable includes a protective cable sheath. It comes with parts kits and tungsten electrodes, making it "ready to weld." Suitable for use with tungsten electrodes up to 3.2mm, it can weld materials up to 4-5mm thickness. Designed for standard inverter welding machines without special control-plug or gas hose connections, the gas hose is connected directly to the gas regulator on the cylinder and controlled through the valve on the torch head.
FEATURES
- Made in Europe
- Modern ergonomic Handle with Ball Joint to allow easy handling of the torch
- Fitted with large "35-50" connectors, ready to fit to most standard inverters with output of 200A-250A or more
- Flexible torch head
- Valved style heads for use with most standard inverter welders
- 2-piece style cable with protective cable sheath fitted
- Includes parts kits & tungsten electrodes "ready to weld"
- 4 Metres
- 200 amp max capacity
- Suitable for use with tungsten electrodes up to 3.2mm, and for welding materials up to approx' 4-5mm thickness
- Designed for fitting to standard inverter welding machines which do NOT have special control-plug or gas hose connections. The gas hose on the TIG torch is connected directly to the gas regulator (on the gas cylinder) and gas flow is controlled via the valve on the TIG torch head.
PARTS FITTED TO THE TORCH
- 1 x 57Y02 Long Back Cap
- 1 x 10N23 1.6mm Collet
- 1 x 10N31 1.6mm Collet Body
- 1 x 10N47 'Alumina' Cup
- 1 x Tungsten Electrode 1.6mm - DC type, Thoriated Red-Tip
ADDITIONAL PARTS SUPPLIED WITH THE TORCH
- 1 x 10N24 2.4mm Collet
- 1 x 10N32 2.4mm Collet Body
- 1 x Tungsten Electrode 2.4mm - DC type, Thoriated Red-Tip
NOTE
Product Images are for illustration purposes only
