Weldclass TIG Torch with Valve 17FV Series (150 Amp)

PLEASE CONTACT US FOR PRICE AND AVAILABILITY

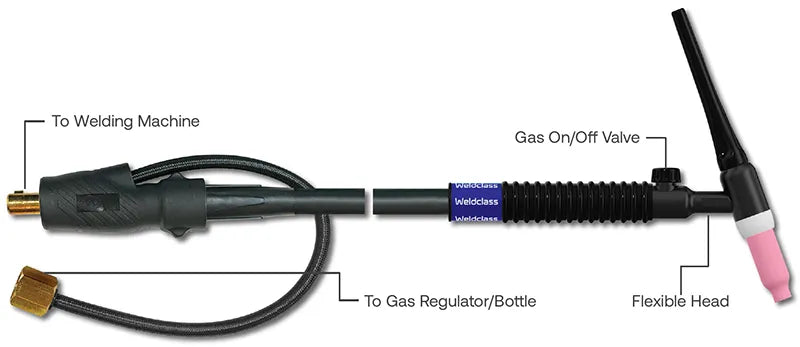

This European-made TIG Torch with Valve 17FV Series (150 Amp) comes with standard "10-25" and large "35-50" connectors, making it compatible with most standard inverter welders. Its modern ergonomic handle with ball joint allows for easy handling while the flexible torch head and valved style heads ensure a smooth welding experience. The two-piece cable with protective sheath includes parts kits and tungsten electrodes for immediate use. It can handle up to 150 amps and is suitable for tungsten electrodes up to 2.4mm, with a maximum welding thickness of approximately 3mm. Designed for standard inverter welders without special control-plug or gas hose connections, the gas hose is directly connected to the gas regulator and controlled by the valve on the TIG torch head.

 FEATURES

• Made in Europe
• Includes standard "10-25" and large "35-50" connectors, ready to fit to most standard inverter welders
• Modern ergonomic Handle with Ball Joint to allow easy handling of the torch
• Flexible torch head
• Valved style heads for use with most standard inverter welders
• 2-piece style cable with protective cable sheath fitted
• Includes parts kits & tungsten electrodes "ready to weld"
• 150 amp max capacity
•  Suitable for use with tungsten electrodes up to 2.4mm, and for welding materials up to approx' 3mm thickness
• Designed for fitting to standard inverter welding machines which do NOT have special control-plug or gas hose connections. The gas hose on the TIG torch is connected directly to the gas regulator (on the gas cylinder) and gas flow is controlled via the valve on the TIG torch head.

PARTS FITTED TO THE TORCH

• 1 x 57Y02 Long Back Cap
• 1 x 10N23 1.6mm Collet
• 1 x 10N31 1.6mm Collet Body
• 1 x 10N47 'Alumina' Cup
• 1 x Tungsten Electrode 1.6mm - DC type, Thoriated Red-Tip

ADDITIONAL PARTS SUPPLIED WITH THE TORCH

• 1 x 10N24 2.4mm Collet
• 1 x 10N32 2.4mm Collet Body
• 1 x Tungsten Electrode 2.4mm - DC type, Thoriated Red-Tip

NOTE
Product Images are for illustration purposes only
