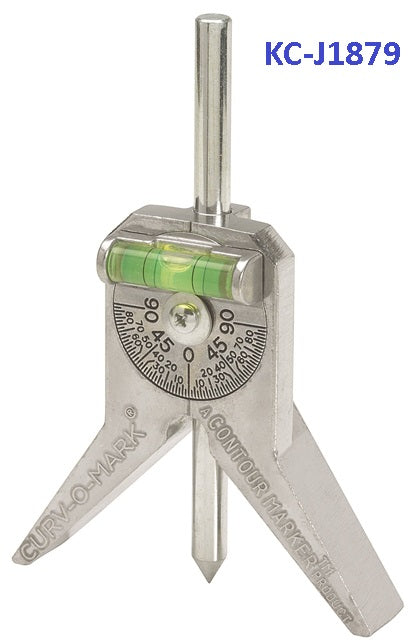

Weldclass Standard No.6 Contour Curv-O-Mark Centering Head

LOW STOCK MAY TAKE UP TO 7 DAYS FOR DISPATCH

The Weldclass Standard No.6 Contour Curv-O-Mark Centering Head is designed for precise center line settings, angle establishment, and marking for butt-ins, as well as locating points within pipes and tanks. It is also useful for laying out key ways and measuring declivity. This versatile tool can be used for finding top dead center or bottom dead center on pipes, as well as locating other ordinate lines on the sides or at varying angles. It is suitable for use on pipes and larger structures, and features a 100mm Y-type head with an adjustable dial bubble protractor (no.DSL). The manually operated centring pin can be used with a hammer and is made from durable aluminium with a hardened steel pin.

FEATURES

• Aids in the settings of center lines, establishing angles and marks for butt-ins, locating points inside pipes and tanks, laying out key ways and measuring declivity
• Used most often for finding top dead center or bottom dead center on pipe
• You can use it to find the location of other ordinate lines on the sides or at different angles.
• Use on pipe 12mm (1/2 in) & larger
• Has a 100mm (4 in) Y-type head and is fitted with adjustable dial bubble protractor (no.DSL)
• Centering pin is manually operated (use with a hammer)
•  Made from aluminium with a hardened steel pin

NOTE

THIS ITEM DOES NOT SHIP TO PO BOXES. A ST ADDRESS IS REQUIRED

Product Images are for illustration purposes only
