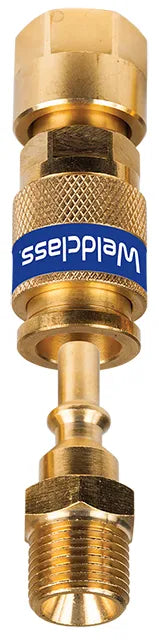

Weldclass Oxygen or Argon Regulator Mount Coupling Set

This Weldclass Oxygen or Argon Regulator Mount Coupling Set features fast and safe hose and torch exchange, allowing for quick and easy equipment dismantling and assembly. It is compliant with the ISO7289/EN561 standards for gas welding equipment, and can be used for a variety of gas types such as Oxy, Acetylene, LPG, MIG, or TIG. The "Push ring" system prevents accidental disconnection, and a non-return valve shuts off flow when disconnected and prevents reverse flow during use. It is also equipped with Australian standard 5/8" UNF threads for oxy equipment.

FEATURES

• Oxygen or Argon Regulator Mount Coupling Set
• Fast Exchange Between Hoses and Different Torches
• Allows equipment to be quickly & safely dismantled / assembled
• Complies with ISO7289 / EN561 Standards (“Gas welding equipment – Quick-action coupling with shut-off valves for welding, cutting and allied processes”)
• Use for Oxy, Acetylene, LPG, MIG or TIG Gas
• “Push ring” system prevent accidental disconnection
• Non-return valve to shut off flow when disconnected – also prevents reverse flow when equipment is in use
• Oxygen and fuel gas cannot be interchanged
• Australian standard 5/8″ UNF threads for oxy equipment

COMPATABILITY WITH OTHER BRANDS OF COUPLINGS
Weldclass couplings comply with ISO7289 & EN561 standards, and are compatible with any other brand of coupling that conforms to these same standards.
Most couplings conform to ISO7289 & EN561, however some brands are a unique design and are not compatible with others.

FLOW CAPACITY

• Suitable for medium to high flow applications
• Flow rate with Oxygen @ 1,000kpa = approx. 1,600L/min

NOTE
Photos are for illustration purposes only
THIS ITEM DOES NOT SHIP TO PO BOXES. A ST ADDRESS IS REQUIRED
