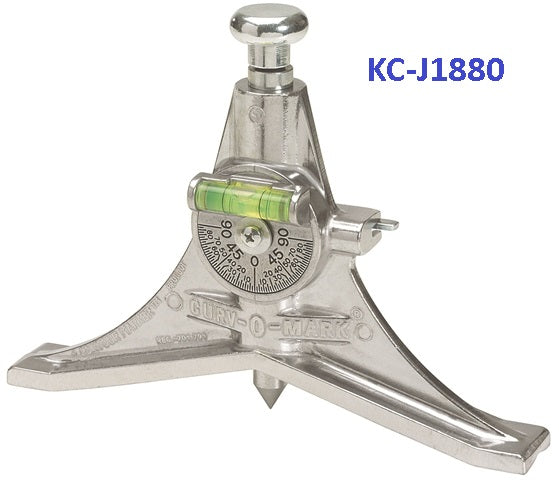

Weldclass Jumbo No.7 Contour Curv-O-Mark Centering Head (200mm head)

PLEASE CONTACT US FOR PRICE AND AVAILABILITY

This Jumbo No.7 Contour Curv-O-Mark Centering Head features a 200mm head that is specifically designed for pipes 25mm and larger. With a spring-loaded and trigger operated pin, it assists in establishing angles and marks, locating points inside pipes and tanks, laying out key ways, and measuring declivity. It is often used to find top dead center or bottom dead center on pipes, as well as to locate other ordinate lines on the sides or at different angles. This durable and versatile tool is made from aluminium and includes a hardened steel pin, as well as an adjustable dial bubble protractor (no.DSL). No hammer is required for use thanks to the spring-loaded and trigger operated centering pin.

FEATURES

• Centering Head Jumbo No.7
• 200mm head for pipe 25mm+ with spring-loaded / trigger operated pin
• Aids in the settings of center lines, establishing angles and marks for butt-ins, locating points inside pipes and tanks, laying out key ways and measuring declivity
• Used most often for finding top dead center or bottom dead center on pipe
• You can use it to find the location of other ordinate lines on the sides or at different angles.
• Use on pipe 25mm (1 in) & larger
• Has a 200mm (8 in) Y-type head and is fitted with adjustable dial bubble protractor (no.DSL)
• Centering pin is spring loaded & trigger operated (hammer not required)
• Made from aluminium with a hardened steel pin

NOTE
Photos are for illustration purposes only
