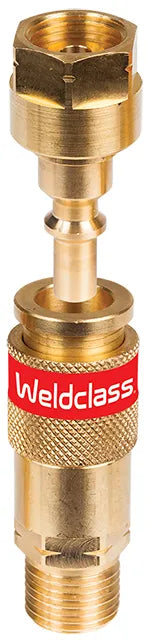

Weldclass Fuel Gas Acetylene/LPG Torch Mount Coupling Set

The Fuel Gas Acetylene/LPG Torch Mount Coupling Set features quick exchange between hoses and different torches, allowing for safe and efficient dismantling and assembly. It complies with both ISO7289 and EN561 Standards, which pertain to gas welding equipment. This coupling can be utilized for a variety of gases, including Oxy, Acetylene, LPG, MIG, and TIG Gas. The "Push ring" system ensures no accidental disconnection, and a non-return valve prevents reverse flow while in use. The set is also equipped with Australian standard 5/8" UNF threads for oxy equipment.

FEATURES

• Fuel Gas Acetylene/LPG Torch Mount Coupling Set
• Fast Exchange Between Hoses and Different Torches
• Allows equipment to be quickly & safely dismantled / assembled
• Complies with ISO7289 / EN561 Standards (“Gas welding equipment – Quick-action coupling with shut-off valves for welding, cutting and allied processes”)
• Use for Oxy, Acetylene, LPG, MIG or TIG Gas
• “Push ring” system prevent accidental disconnection
• Non-return valve to shut off flow when disconnected – also prevents reverse flow when equipment is in use
• Oxygen and fuel gas cannot be interchanged
• Australian standard 5/8″ UNF threads for oxy equipment

COMPATABILITY WITH OTHER BRANDS OF COUPLINGS
Weldclass couplings comply with ISO7289 & EN561 standards, and are compatible with any other brand of coupling that conforms to these same standards.
Most couplings conform to ISO7289 & EN561, however some brands are a unique design and are not compatible with others.
FLOW CAPACITY

• Suitable for medium to high flow applications
• Flow rate with Oxygen @ 1,000kpa = approx. 1,600L/min

NOTE
Photos are for illustration purposes only
