Weldclass Fuel Gas Acetylene/LPG Regulator Mount Coupling Set
Weldclass Fuel Gas Acetylene/LPG Regulator Mount Coupling Set
SKU Product Code: GE-P4-RQCF
Low stock: 1 left
Share

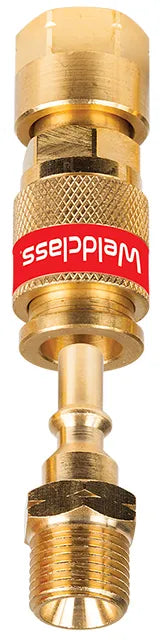

This fuel gas coupling set features a regulator mount for fast exchange between hoses and different torches, allowing for quick and safe equipment dismantling or assembly. Complying with ISO7289 / EN561 Standards, it is suitable for use with oxy, acetylene, LPG, MIG, or TIG gas and utilizes a "push ring" system to prevent accidental disconnection. The non-return valve shuts off flow when disconnected, preventing reverse flow during use. Additionally, the Australian standard 5/8" UNF threads are suitable for oxy equipment.
FEATURES
- Regulator Mount Fuel Gas (Acetylene/LPG) Coupling Set
- Fast Exchange Between Hoses and Different Torches
- Allows equipment to be quickly & safely dismantled / assembled
- Complies with ISO7289 / EN561 Standards (“Gas welding equipment - Quick-action coupling with shut-off valves for welding, cutting and allied processes”)
- Use for Oxy, Acetylene, LPG, MIG or TIG Gas
- "Push ring" system prevent accidental disconnection
- Non-return valve to shut off flow when disconnected - also prevents reverse flow when equipment is in use
- Oxygen and fuel gas cannot be interchanged
- Australian standard 5/8" UNF threads for oxy equipment
COMPATABILITY WITH OTHER BRANDS OF COUPLINGS
Weldclass couplings comply with ISO7289 & EN561 standards, and are compatible with any other brand of coupling that conforms to these same standards.
Most couplings conform to ISO7289 & EN561, however some brands are a unique design and are not compatible with others.
FLOW CAPACITY
- Suitable for medium to high flow applications
- Flow rate with Oxygen @ 1,000kpa = approx. 1,600L/min
NOTE
Photos are for illustration purposes only
THIS ITEM DOES NOT SHIP TO PO BOXES. A ST ADDRESS IS REQUIRED
