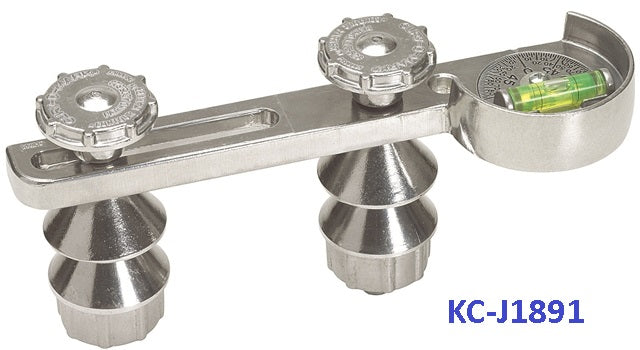

Weldclass Dial Angle Flange Level No.20 Contour Curv-O-Mark

The Weldclass Dial Angle Flange Level No.20 Contour Curv-O-Mark combines dual functionality as both a precision dial degree utility level and flange alignment instrument. Engineered for efficiency, this versatile tool accommodates flange bolt hole spacings from 50mm to 140mm using included self-aligning conical spacer pins with threaded fasteners. Cast aluminium construction with a 12mm machined body provides structural integrity, while the integrated protective housing shields the bubble level from weld spatter and impact damage. The adjustable DSL mechanism ensures accurate readings across demanding industrial applications, streamlining setup procedures for pipe fitters and welders.

FEATURES

• Dial Angle Flange Level No.20
• Versatile tool that can be used as a dial degree utility level or, with attachments, for two-holing flange alignment.
• Saves time, Easy to use
• Comes with a 2 threaded, self-aligning flange pins (conical spacer nut and bolts) for fastening the Level to a pipe flange
• One of the flange pins is stationary, while the other slides up to 140mm (5-1/2 in) along a slot in the level to accommodate various flange bolt hole spacings from 50mm (2 in) to 140mm (5-1/2 in)
• Flange pins are designed to fit bolt hole size from 15-44mm ID
• Made of cast aluminium with a protective housing containing an adjustable DSL
• The body of the tool is 12mm (1/2 in) thick with a machined surface
• The level bubble is protected from weld spatter and breakage with a built-in housing

NOTE
Photos are for illustration purposes only
