Stronghand Magnet Inside Outside 90 Degree 165x110x20mm Product Code MLD600

Stronghand Magnet Inside Outside 90 Degree 165x110x20mm Product Code MLD600

Product Code: XMLD600

$50.00
$50.00
Sale Sold out

Low stock: 5 left
View full details

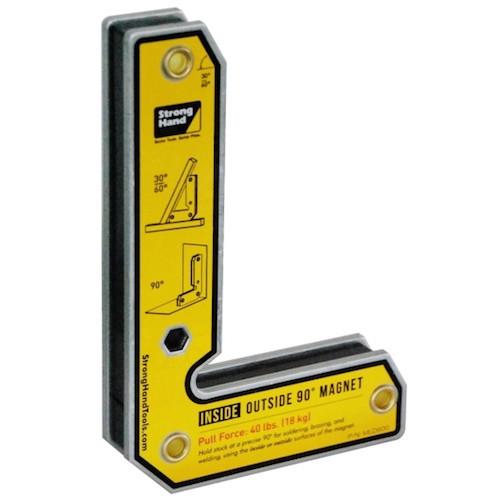

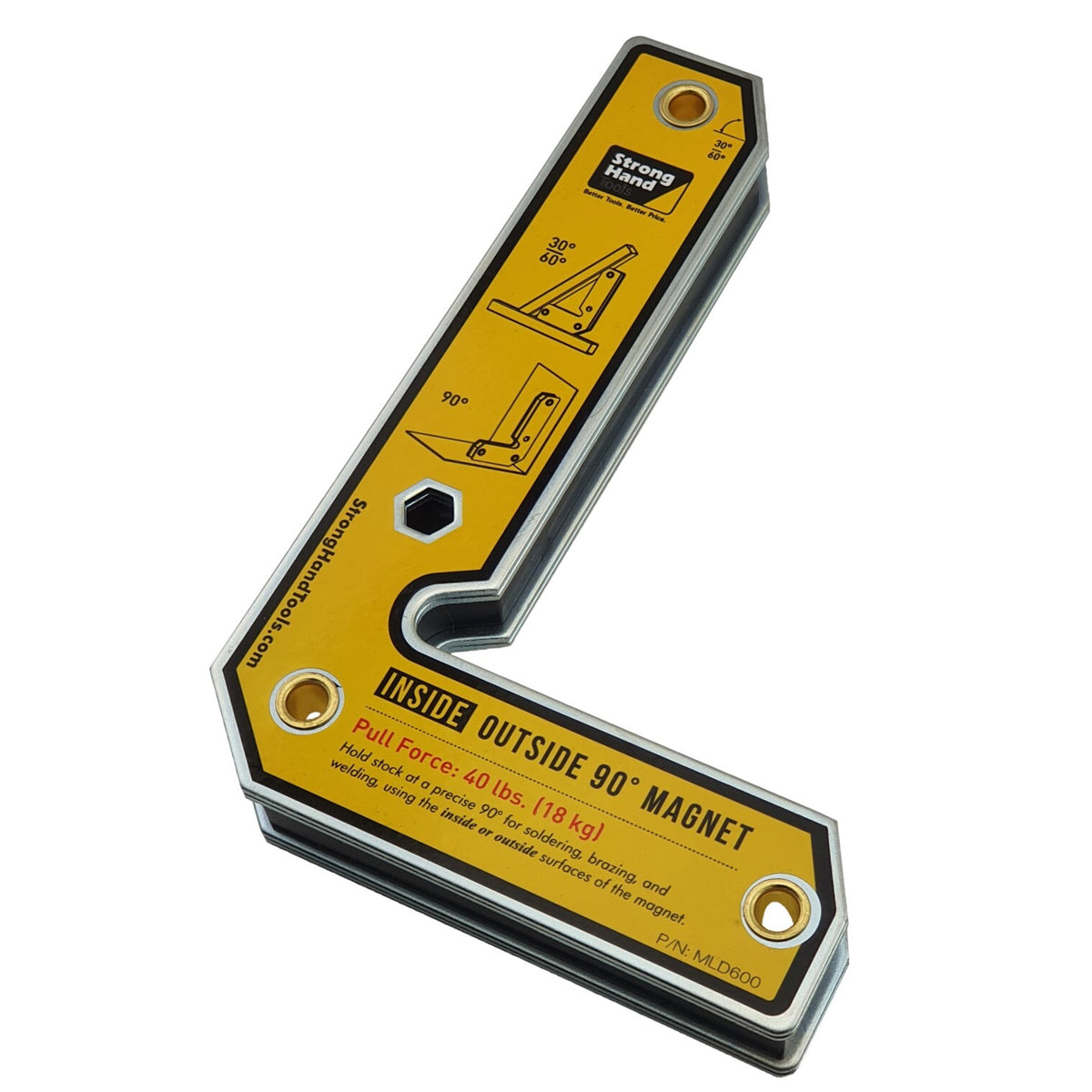

Conveniently hold stock with the Stronghand Magnet Inside Outside 90 Degree 165x110x20mm (Product Code MLD600). This versatile tool can grip and secure a variety of metal materials, including sheet metal, round pipes, square, angled, and flat stock. The dual rectangular magnets ensure consistent and powerful holding force, while the mounting holes allow for easy fixture assembly by linking two magnets together. The magnet's hex hole can also be used for efficient breakaway leverage. With an angle of 90 degrees (also available in 30 and 60 degrees), a height of 165mm, a width of 110mm, and a thickness of 20mm, this magnet has a magnetic pull force of 18kg and a weight of 0.8kg.


FEATURES

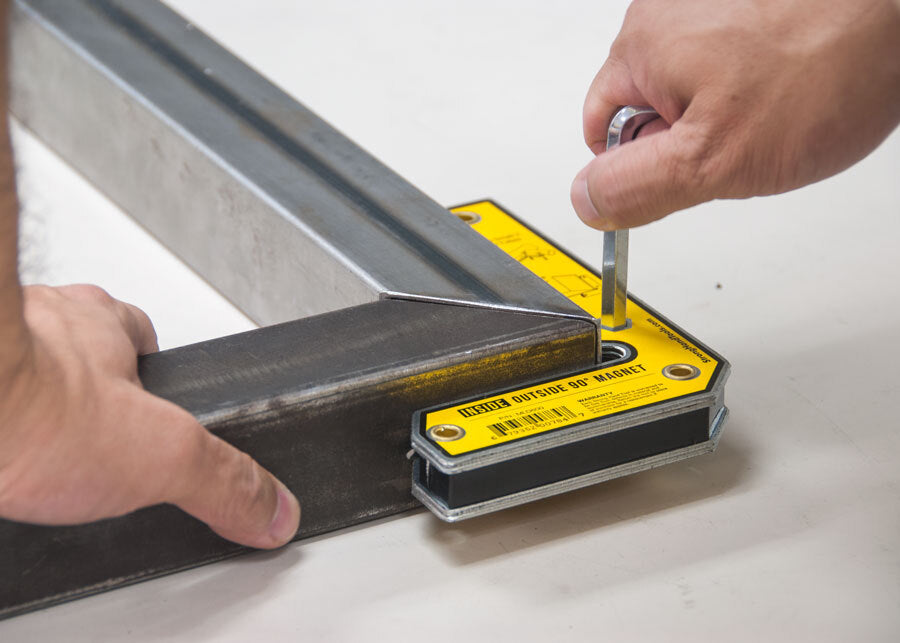

  • Hold stock from the outside, leaving clearance for inside welds, or hold stock from the inside for outside welds.
  • Hold and position sheet metal, round pipes, square, angled or flat stock.
  • The Inside / Outside Angle Magnets are constructed from two independent rectangular magnets for consistent, undiminished magnetic force when both sides are attached to work pieces.
  • Use mounting holes to link two magnets together for use as fixturing elements.
  • Use hex hole on magnet for breakaway leverage.
  • Angles: 90o (30o, 60o)
  • Height: 165 mm
  • Width: 110 mm
  • Thickness: 20 mm
  • Mag. Pull Force: 18 kg
  • Weight: 0.8kg

NOTE
Photos are for illustration purposes only
