Strong Hand Magnet Inside Outside 90 Degree Set of 2 Product Code: MLDT350

These 90-degree magnets, is perfect for holding and positioning sheet metal, round pipes, square, angled or flat stock. These Inside / Outside Angle Magnets are made up of two separate rectangular magnets that provide consistent, undiminished magnetic force when attached to workpieces on both sides. You can link two magnets together using the mounting holes to create fixturing elements, and the hex hole on the magnet allows for easy breakaway leverage.

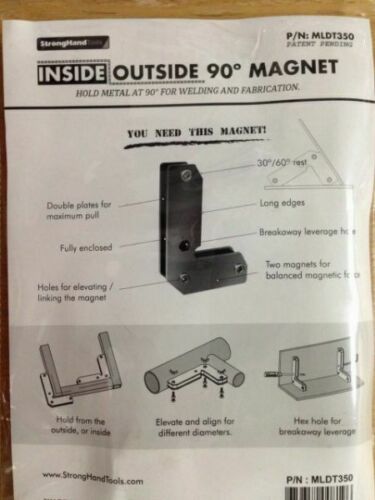

FEATURES

• Hold and position sheet metal, round pipes, square, angled or flat stock.
• The Inside / Outside Angle Magnets are constructed from two independent rectangular magnets for consistent, undiminished magnetic force when both sides are attached to workpieces.
• Use mounting holes to link two magnets together for use as fixturing elements.
• Use hex hole on magnet for breakaway leverage.

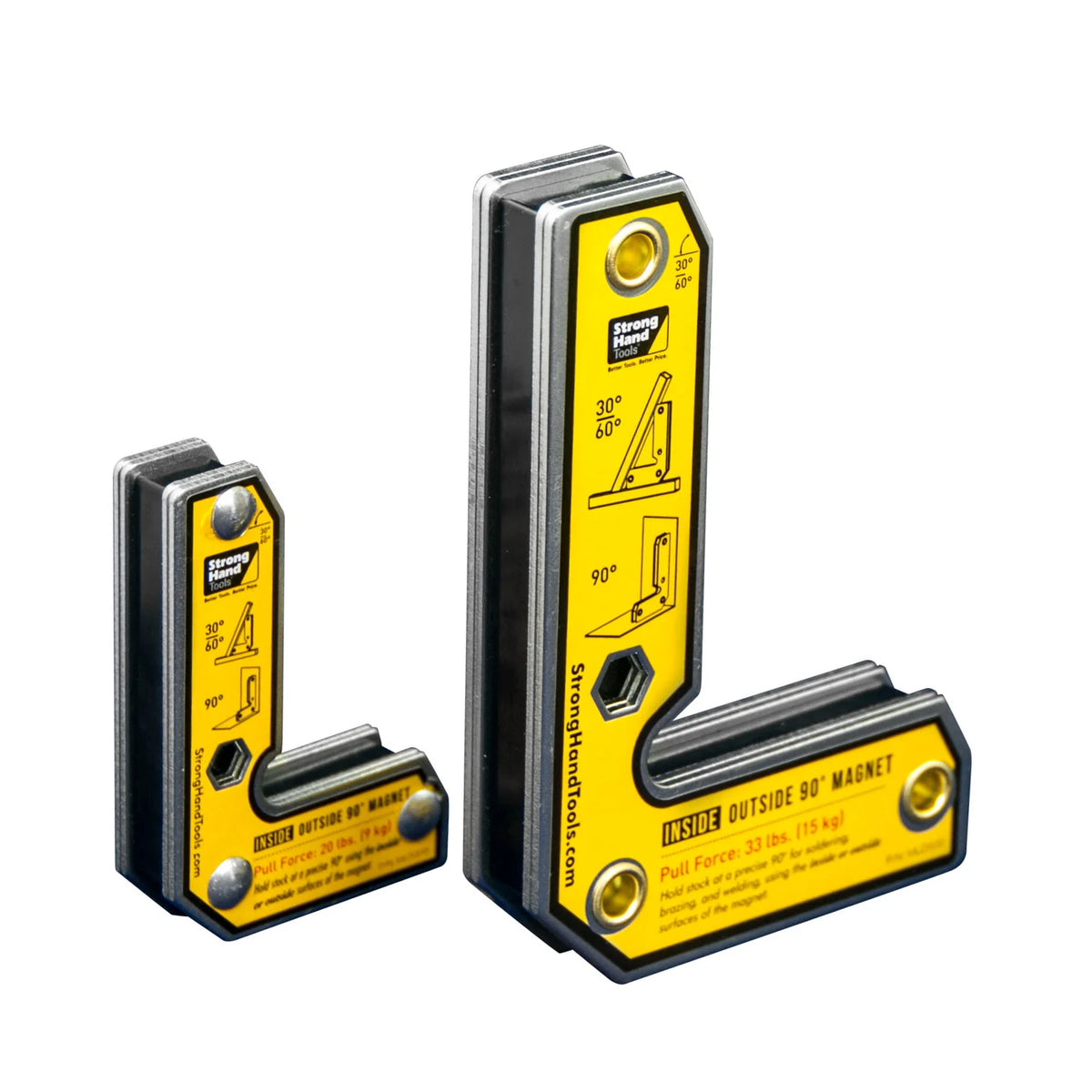

• Comes as 2 Pack - Includes MLD300 and MLD500 Magnets

MLD300 MAGNET-SMALL

• ANGLES - 90°(30°,60°)
• HEIGHT - 3"(75.5mm)
• WIDTH- 2"(52mm)
• THICKNESS- 0.55"(14mm)
• MAG PULL FORCE- 20lbs(9kg)

• ANGLES -90°(30°,60°)
• HEIGHT - 5"(125mm)
• WIDTH - 3.35"(85mm)
• THICKNESS - 0.55"(14mm)
• MAG PULL FORCE - 33lbs(15kg)

Must be used for tack welding only and removed before completing weld. Avoid prolonged exposure of magnetic products to heat sources of 176ºF / 80ºC

NOTE

THIS ITEM DOES NOT SHIP TO PO BOXES. A ST ADDRESS IS REQUIRED

Product Images are for illustration purposes only
