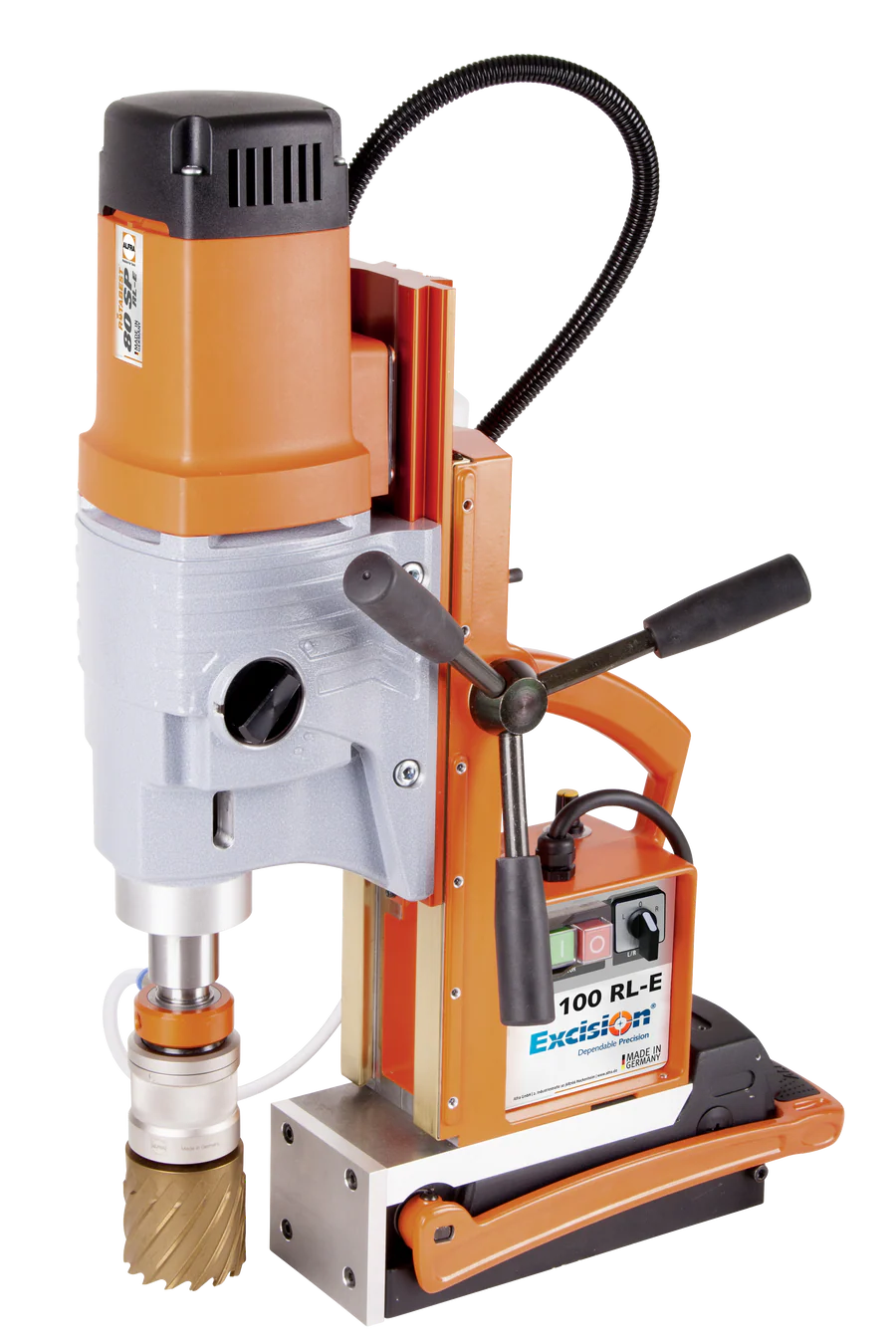

Magnex Drill 100 RL-E

Magnex Drill 100 RL-E

Product Code: 18628

$5,910.00
$5,910.00
Sale Sold out

Low stock: 1 left
View full details

LOW STOCK MAY TAKE UP TO 5 DAYS FOR DISPATCH

Magnex 100 RL-E packs big capabilities in a compact package. Its permanent magnet doesn't need a power supply, and the forward-reversible gearbox makes tapping a breeze. With a variable 4-speed gearbox and Morse Taper 3 spindle, it's built for precision and versatility.

FEATURES

  • Powerful permanent magnet — no power supply required
  • 4-speed variable oil bath gearbox
  • Forward-reversible drive, ideal for tapping
  • Solid brass guides with spring loading for rigid gliding and no vibration
  • Morse Taper 3 spindle
  • Made in Germany

SPECIFICATIONS

Model / Product code Magnex 100 RL-E
SKU 18628
Core Drill Dimensions 12.0–100.0mm
Cutting Depth 110.0mm
Twist Drill 1.0–16.0mm with drill chuck; up to 32.0mm with MT3 DIN 345
Counter-Boring 10.0–55.0mm
Tapping Up to M30
Arbors MT3
Stroke 190mm
Height Adjustment 60mm
Gearbox Speeds 1: 50–110 rpm / 2: 75–175 rpm / 3: 105–245 rpm / 4: 165–385 rpm (Right/Left)
Power Consumption 1,800W
Voltage 230V 50/60Hz
Tool Force (10mm) 2,500N
Magnetic Base 94×255mm
Weight 22.6kg



NOTE

ITEM DOES NOT SHIP TO PO BOXES. PLEASE PROVIDE ST ADDRESS
Product Images are for illustration purposes only
