Lincoln Powercraft 206 TIG AC/DC Welding Machine Product Code K69079-1

Lincoln Powercraft 206 TIG AC/DC Welding Machine Product Code K69079-1

Product Code: WK69079-1

$0.00
$0.00
Sale Sold out

Low stock: 1 left
View full details

PLEASE CONTACT US FOR PRICE AND AVAILABILITY

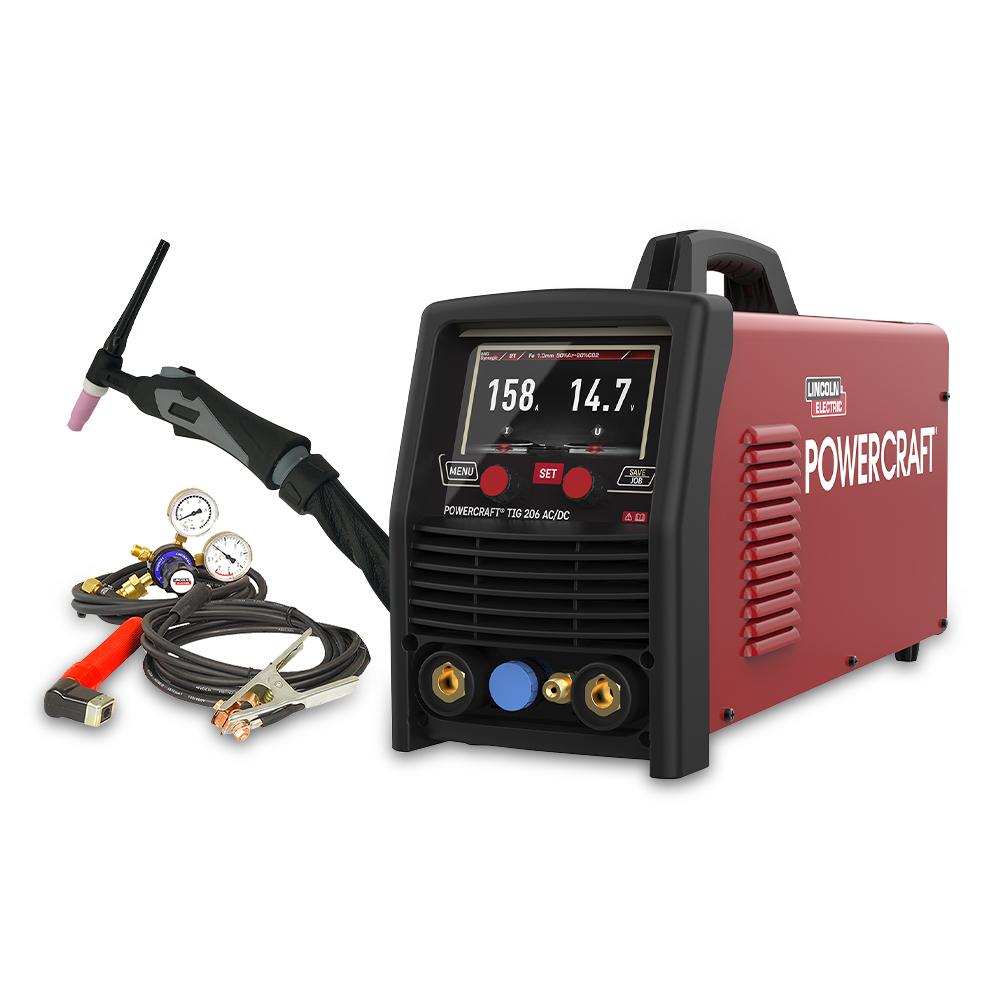

Lincoln Powercraft 206 TIG AC/DC Welding Machine features an LCD screen to accurately adjust and monitor welding output. It also utilizes new PWM and IGBT inverter technologies for optimal performance. Equipped with Active PFC technology, this machine has a high duty cycle and energy efficiency. It can even be used with a long extension lead. With an IP21S rating, it provides environmental and safety protection. Additionally, it has a 10-memory function and weighs 12 kg.

FEATURES

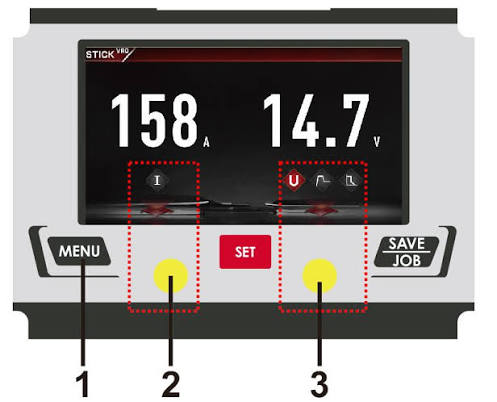

  • LCD screen for accurate setting and feedback of welding output.
  • New PWM technology and IGBT inverter technology.
  • Active PFC technology for increased duty cycle and energy efficiency.
  • Can use with long extension lead.
  • IP21S rating for environmental/safety protection.
  • 10 Memory function.
  • Weight 12 Kg

SPECIFICATIONS
TIG

  • Pulse AC/DC TIG.
  • High frequency AC/DC TIG.
  • Lift arc ignition (prevents tungsten sticking during arc ignition).
  • 2T /4T trigger control.
  • Adjustable down slope.
  • Spot welding mode for TIG HF.
  • On torch remote control.

SMAW

  • VRD function (Stick electrode)
  • Hot start (improves electrode starting)
  • Adjustable Arc Force

MACHINE SPECIFICATIONS

  • Input voltage (V) / phase: 240±10% / 1
  • Frequency (HZ): 50/60
  • Maximum input current (A):
    • TIG AC: 19.5
    • TIG DC: 20.5
    • Stick VRD: 29.6
  • Input effective current Ieff (A):
    • TIG AC: 8.7
    • TIG DC: 9.2
    • Stick VRD: 9.4
  • Input power (KW):
    • TIG AC: 4.9
    • TIG DC: 4.9
    • Stick VRD: 7.2
  • Welding current (A):
    • TIG AC: 10-200
    • TIG DC: 10-200
    • Stick VRD: 30-200
  • Max no-load voltage (V):
    • TIG AC: 73.0
    • TIG DC: 73.0
    • Stick VRD: 10.5
  • Duty cycle:
    • TIG AC: 20% 200A | 60% 115A | 100% 90A
    • TIG DC: 20% 200A | 60% 115A | 100% 90A
    • Stick VRD: 10% 200A | 60% 85A | 100% 65A
  • Power factor (%): 0.99
  • Protection class: IP21S
  • Circuit breaker: 15A “D” Class
  • Generator compatible: YES
  • Generator requirements: Output: ≥ 8kVa / Output range: 190-265 volts / Peak max: 370 volts / Frequency: 50-60Hz

NOTE
DELIVERY TO CAPITAL CITIES ONLY.
THIS ITEM DOES NOT SHIP TO A PO BOX. MUST HAVE A ST ADDRESS.
Photos are for illustration purposes only
