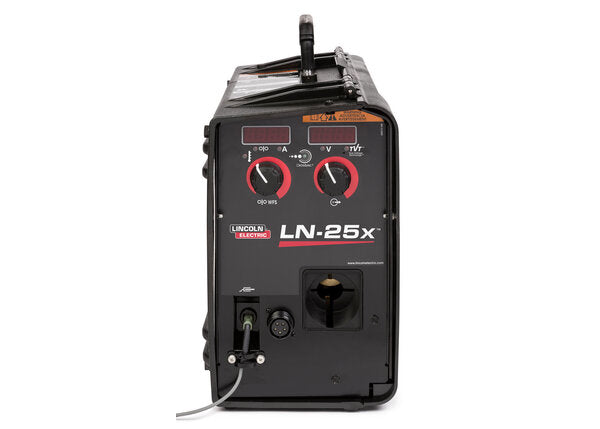

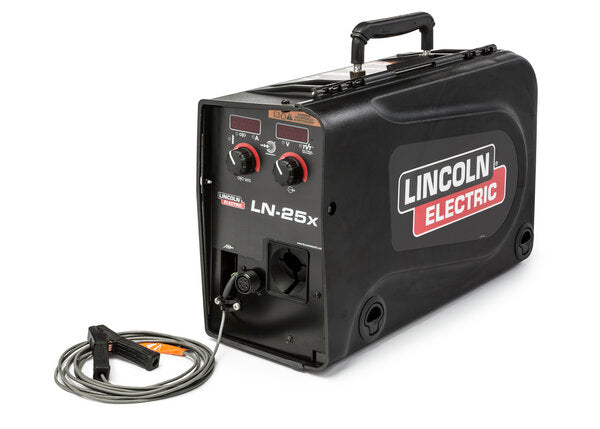

Lincoln LN-25X w/CrossLinc and TVT (with Flowmeter, Twist Mate/Dinse) K4267-4

PLEASE CONTACT US FOR PRICE AND AVAILABILITY

FULL CONTROL OF YOUR SYSTEM WITH NO CONTROL CABLES

Safety

• Reduce job site clutter by removing cumbersome control cables
• Eliminate unnecessary movement of personnel across the worksite
• Eliminate the need to drag control cables around the site

Quality

• Full voltage control at the feeder results in the correct settings for every weld
• Accurately compensate for voltage drop across long cable runs
• Eliminate unintentional machine adjustments

Productivity

• Set up faster with fewer cable connections
• Eliminate helpers or trips to the power source when making setting adjustments
• Minimize rework with easy settings adjustment

Reliability

• Fully encapsulated and environmentally protected electronics
• Replaceable flame resistant case can be installed in under five minutes

CROSSLINC TECHNOLOGY: SOLVING SITE WELDING ISSUES

Worker safety, weld quality, productivity and equipment reliability come to mind when welding on site or on large structures. In these environments, it is typical for the operator to work closely with a rugged, compact and lightweight wire feeder, connected to a weather-resistant power source hundreds of feet away. Until now, portable wire feeders have been available in two configurations: basic ‘across-the-arc’ models or portable feeders equipped with an added control cable.
‘Across-the-arc’ models are powered by the weld cable. This configuration provides benefits of fewer cables running back to the power source, but voltage control at the point-of-use is not possible.
The addition of a control cable to the system allows the operator to adjust voltage at the point-of-use, but these cables can be costly and add additional complexity to the production environment.
There has to be a better way.

FEATURES

• Portable and light weight field construction wire feeder
• CrossLinc technology provides voltage control on the feeder when paired with a CrossLinc-compatible power source. No control cables are needed.
• TVT compensates for voltage drop across long weld cable lengths, allowing you to weld with the voltage you set at the feeder
• Twist Mate style quick connecting power connection.
• Integrated flowmeter included
• Fully encapsulated and environmentally protected electronics.
• Replaceable, flame resistant case can be installed in under five minutes.
• Crosslinc Technology.
• True Voltage Technology (TVT) automatically compensates for voltage drops across long welding cables.
• Weight 18.5 Kg

INCLUDED

• LN-25X Wire Feeder w/TVT
• Twist Mate Dinse Plug on Electrode Cable
• Flowmeter Integrated into Feeder

NOTE
DELIVERY TO CAPITAL CITIES ONLY.
THIS ITEM DOES NOT SHIP TO A PO BOX. MUST HAVE A ST ADDRESS.
Photos are for illustration purposes only
