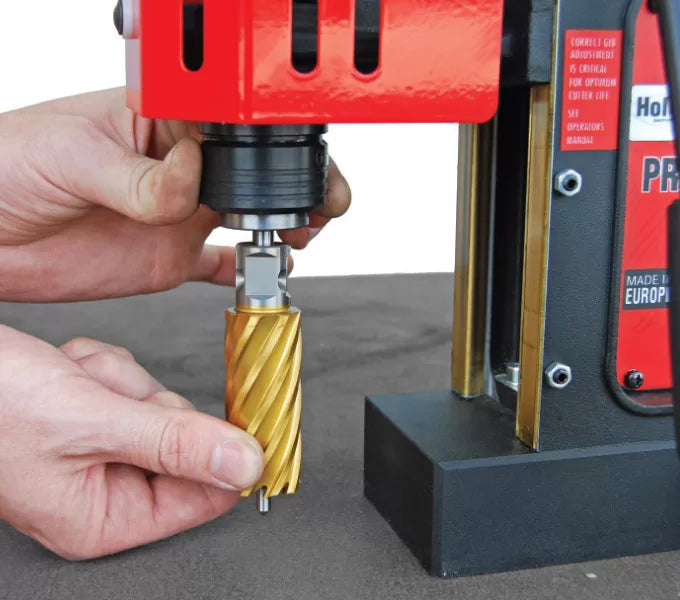

HOLEMAKER UNI SHANK GOLD SERIES ANNULAR CUTTER 25MM X 75MM (8mm PIN)
HOLEMAKER UNI SHANK GOLD SERIES ANNULAR CUTTER 25MM X 75MM (8mm PIN)
SKU Product Code: YAT2575
Regular price
$230.00
Regular price
Sale price
$230.00
Unit price
/
per
Low stock: 5 left
Couldn't load pickup availability
Share
The Holemaker Uni Shank Gold Series Annular Cutter features a Titanium Nitride coating for increased tool life. This coating provides several benefits, such as a surface hardness of 85HRC and a ceramic surface that reduces friction by up to 30%. In addition, the M2AL High Speed Steel material with a hardness of 67.5 HRC and a step hardened process increase the endurance and performance of the cutting edge. The multi-cut geometry ensures smooth and fast cutting, while the fully ground design with internal relief allows for reamed quality, burr-free holes and reduces torque and horsepower requirements. With a universal 19.05mm (¾”) shank and two flat sections, this cutter is suitable for most magnetic base drilling machines.
FEATURES
TITANIUM NITRIDE COATING.
The Titanium Nitride coating significantly increases the tool life by providing the following benefits:
- Increased surface hardness to 85HRC.
- Ceramic surface, reducing friction by up to 30%.
- Especially resistant to cold welding.
- Suitable for cutting a wide range of materials.
The Titanium Nitride coating significantly increases the tool life by providing the following benefits:
- Increased surface hardness to 85HRC.
- Ceramic surface, reducing friction by up to 30%.
- Especially resistant to cold welding.
- Suitable for cutting a wide range of materials.
M2AL HIGH SPEED STEEL MATERIAL.
M2AL High Speed Steel is a high alloy material with a hardness of up to 67.5 HRC, designed for increased endurance of the cutting edge and tool life.
M2AL High Speed Steel is a high alloy material with a hardness of up to 67.5 HRC, designed for increased endurance of the cutting edge and tool life.
STEP HARDENED PROCESS.
This state of the art manufacturing process produces cutters with extremely hard tooth tips for increased cutter performance, while maintaining a softer body which is less susceptible to breakage than standard high speed steel cutters.
This state of the art manufacturing process produces cutters with extremely hard tooth tips for increased cutter performance, while maintaining a softer body which is less susceptible to breakage than standard high speed steel cutters.
MULTI-CUT GEOMETRY.
Provides smooth and fast cutting, with decreased chatter. This also increases the cutters ability to remove swarf away from the cut, and helps to enhance centering.
Provides smooth and fast cutting, with decreased chatter. This also increases the cutters ability to remove swarf away from the cut, and helps to enhance centering.
FULLY GROUND WITH INTERNAL RELIEF.
This feature allows Holemaker cutters to produce reamed quality, burr-free holes, and also helps to reduce torque and horsepower requirements.
This feature allows Holemaker cutters to produce reamed quality, burr-free holes, and also helps to reduce torque and horsepower requirements.
UNIVERSAL SHANK.
19.05mm (¾”) Universal Shank with 2 flat sections to suit most magnetic base drilling machines.Pilot Pin To Suit - SP18075
19.05mm (¾”) Universal Shank with 2 flat sections to suit most magnetic base drilling machines.Pilot Pin To Suit - SP18075
NOTE
Photos are for illustration purposes only
THIS ITEM DOES NOT SHIP TO PO BOXES. A ST ADDRESS IS REQUIRED
