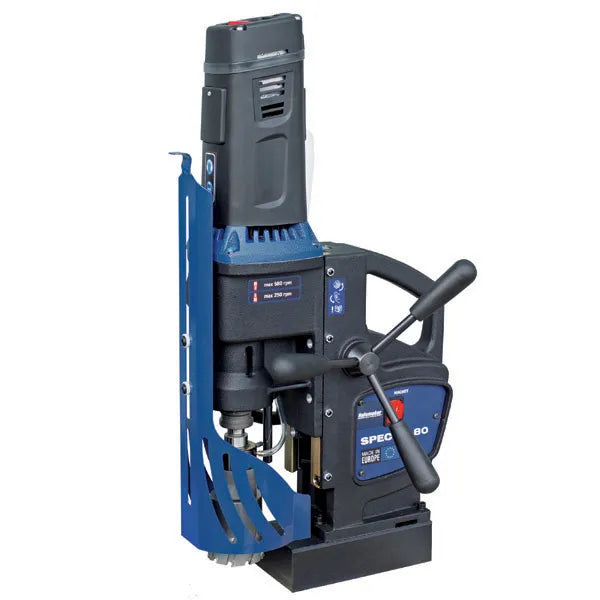

HOLEMAKER SPECIAL 80 MAGNETIC BASE DRILL, 240V, 3MT, CAP: 80MM DIA X 110MM DEPTH

The HOLEMAKER SPECIAL 80 combines large-capacity drilling with advanced tapping functionality for demanding professional applications. This European-engineered machine accommodates M24 thread cutting in both through-holes and blind-hole configurations, with forward and reverse operation enabling seamless transitions between drilling and fastening tasks. Electronic variable speed control delivers precise spindle velocity adjustment across diverse material requirements, whilst intelligent load-sensing technology maintains consistent speed despite varying cutting resistance. The integrated electronic clutch ensures smooth engagement and reduces mechanical stress on internal components, extending operational lifespan. Comprehensive safety architecture includes overload and overheat protection systems, plus a responsive tilt sensor that automatically disengages the motor during unexpected machine breakaway conditions. The 360-degree visual monitoring system provides continuous operational diagnostics, including brush wear indicators and real-time condition assessment. Featuring 3MT spindle configuration and rated for 80mm diameter holes to 110mm depth, this machine serves precision metalworking facilities, structural fabricators, and manufacturing operations requiring integrated drilling and tapping performance with sophisticated control systems and safety features.

FEATURES

• New generation Italian made motor
• Intelligent speed control system maintains stable speed regardless of load changes
• Electronic Variable Speed Control
• Electronic clutch
• Overload and Overheat protection
• Tilt sensor stops the motor in cases of machines break away
• 360-degree visual monitoring system indicates current condition of the drill and gives safety and diagnostic information e.g. worn brushes
• Intuitive control panel at top of the drill
• Very light weight
• Supplied in a durable blow mould carry case with cutter guard & safety strap

SPECIFICATIONS

• Capacity ( Diameter ): 80mm
• Capacity ( Depth ): 110mm
• Twist drill capacity: 25mm
• Tap capacity: M24
• #3 Morse Taper spindle
• Input power: 1600 Watt Single Phase 240V
• Motor Power: 1500 Watt
• 2 Speed variable gearbox (120-190 / 290-450rpm)
• Lightweight, only 18kg
• 11000Nm Magnetic dead lift on 25mm steel plate
• 190mm Stroke
• Height 554mm min / 744mm max

Supplied with arbor for use with 3/4” shank Holemaker cutters up to 75mm diameter and 75mm depth of cut. Optional arbor for 1-1/4” shank cutters up to 80mm diameter and 110mm depth.
