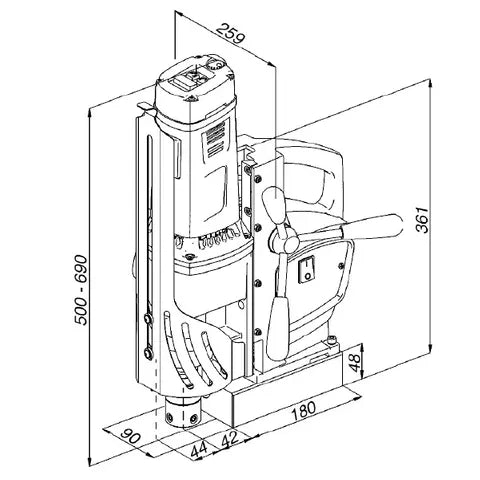

  • Holemaker Special 60 Magnetic Base Drill – Dimensional drawing showing 500–690mm height range
1 2

Holemaker

Holemaker Special 60 Magnetic Base Drill – 240V, MT2, 60mm × 75mm

Holemaker Special 60 Magnetic Base Drill – 240V, MT2, 60mm × 75mm

Product Code: XHMSPECIAL60

$4,849.00
$4,849.00
Sale Sold out

Low stock: 1 left
View full details

The Holemaker Special 60 Magnetic Base Drill is designed for drilling and tapping applications, with a No. 2 Morse taper spindle, 60mm cutter diameter capacity and 75mm cutting depth. Forward and reverse operation with variable-speed adjustment supports tapping up to M20 in through and blind holes. Its two-speed variable gearbox offers 160–250 and 390–580rpm ranges.

Features

  • Intelligent speed control system to maintain spindle speed as loads change
  • Electronic variable-speed control and electronic clutch
  • Overload and overheat protection
  • Tilt sensor stops the motor if the machine breaks away
  • 360-degree visual monitoring system provides drill status, safety and diagnostic information, including worn-brush indication
  • Top-mounted control panel
  • Forward and reverse operation
  • Supplied in a blow mould carry case with cutter guard and safety strap

Specifications

Specification Details
Brand Holemaker
Model / Product code Special 60
Cutter diameter capacity 60 mm
Cutting depth capacity 75 mm
Twist drill capacity 23 mm
Tapping capacity Up to M20, through and blind holes
Spindle taper No. 2 Morse taper (MT2)
Motor power 1500 W
Voltage 240 V
Gearbox 2 variable-speed ranges
Speed ranges 160–250 / 390–580 rpm
Product weight 17 kg
Stroke 190 mm
Height 500 mm minimum / 690 mm maximum
Included safety accessories Cutter guard and safety strap

NOTE
DELIVERY TO CAPITAL CITIES ONLY.
THIS ITEM DOES NOT SHIP TO A PO BOX. A STREET ADDRESS IS REQUIRED.
Product images are for illustration purposes only.
