HOLEMAKER SPECIAL 110 MAGNETIC BASE DRILL, 240V, 3MT, CAP: 120MM DIA X 110MM DEPTH

The HOLEMAKER SPECIAL 110 represents a comprehensive drilling and tapping solution for professional metalworking operations. This European-engineered machine combines large-capacity drilling with precision thread-cutting capability, accommodating M30 threads in both through-holes and blind-hole applications. Featuring forward and reverse operation with infinitely variable speed control, it delivers exceptional versatility across diverse fastening and assembly requirements. Intelligent load-sensing technology maintains consistent spindle speed despite varying material resistance, whilst integrated overload and overheat protection safeguards equipment and operator. A sophisticated tilt sensor provides automatic motor shutdown if the machine experiences unexpected breakaway, preventing damage and injury. The comprehensive 360-degree visual monitoring system delivers real-time diagnostic information including brush wear indicators, enabling proactive maintenance scheduling. With 3MT spindle configuration and capacity for 120mm diameter holes to 110mm depth, this machine serves fabrication shops, precision engineering facilities, and manufacturing operations requiring integrated drilling and tapping performance with advanced safety and control systems.

FEATURES

• New generation Italian made motor
• Intelligent speed control system maintains stable speed regardless of load changes
• Electronic variable speed control
• Electronic clutch
• Overload and overheat protection
• Tilt sensor stops the motor in cases of machines break away
• 360-degree visual monitoring system indicates current condition of the drill and gives safety and diagnostic information e.g. worn brushes
• Intuitive control panel at top of the drill
• Very light weight
• Supplied in a metal carry case with cutter guard & safety strap

SPECIFICATIONS

• Capacity ( Diameter ): 120mm
• Capacity ( Depth ) : 110mm
• Twist drill capacity: 32mm
• Tap capacity: M30
• #3 Morse Taper spindle
• 2150 Watt 240V motor
• 4 Speed variable gearbox (75-110 / 135-200 / 220-320 / 390-570rpm)
• Lightweight, only 25kg
• 18,000Nm Magnetic dead lift on 25mm steel plate
• 225mm Stroke

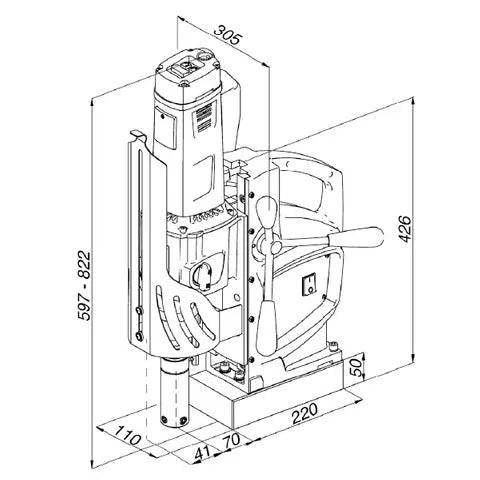

• Height 597mm min / 822mm max
