HOLEMAKER PRO55 MAGNETIC BASE DRILL, CAP: 55MM DIA X 75MM

The HOLEMAKER PRO55 embodies contemporary drilling engineering with advanced structural design and intelligent magnetic technology. Its reinforced frame geometry maximises cutting tool durability whilst the substantial 165mm stroke accommodates extended tooling configurations—enabling single-operation drilling through box section steel, deep-penetration applications, and versatile work with extension arbors, large-capacity cutters, twist drills, reamers, and taps. Magnetic Field Shape Control technology intelligently modulates holding force, delivering superior adhesion on thin materials whilst maintaining rock-solid stability across standard thicknesses. This new-generation platform achieves exceptional power output with reduced weight compared to conventional competitors, delivering superior performance-to-portability characteristics. Rated for 55mm diameter holes with 75mm maximum depth, it addresses the demanding requirements of structural fabrication, heavy-gauge metalworking, and industrial drilling operations where tool longevity, operational versatility, and drilling precision are essential considerations for production efficiency.



FEATURES

• European made machine
• Extra large 165mm stroke allowing the use of an optional 13mm twist drill chuck
• Industrial 2-speed gearbox

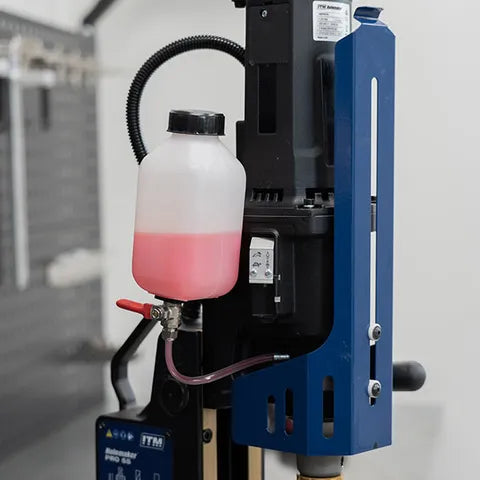

• Through spindle coolant system, with an external side mounted gravity feed coolant tank
• The feed handles can be placed on either the left or right hand side, for increased versatility
• Smart magnet technology to ensure sufficient magnetic adhesion
• Integrated cutter guard for increased user safety
• Supplied in a blow mould plastic carry case
• Grub screw arbor system, which fastens positively onto Holemaker cutters

SPECIFICATIONS

• Capacity (Diameter): 55mm
• Capacity (Depth): 75mm
• Capacity (Twist Drills): 18mm
• Motor Power: 1100 Watt
• Input Power: 1200 Watt Single Phase 240V
• Speed: 2 Speed 200 / 400rpm
• Weight: 15.5kg
• Magnetic Dead Lift: 9,900Nm On 25mm Steel Plate
• Stroke: 165mm
• Height (Min. / Max.): 409 / 574mm

NOTE
DELIVERY TO CAPITAL CITIES ONLY.
THIS ITEM DOES NOT SHIP TO A PO BOX. MUST HAVE A ST ADDRESS.
Photos are for illustration purposes only
