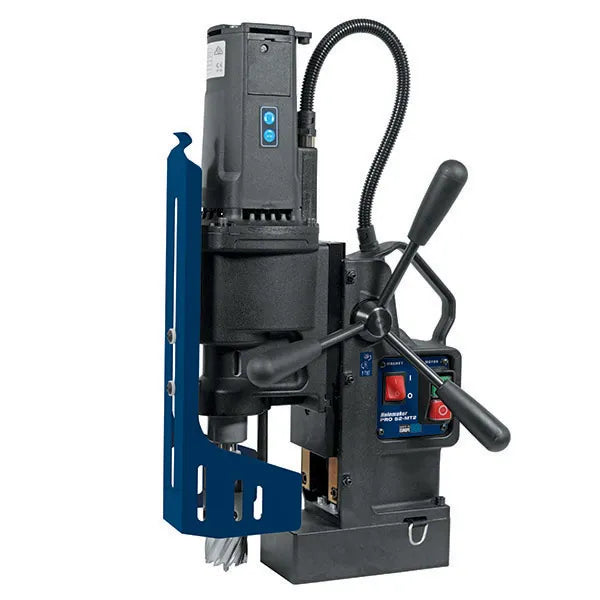

HOLEMAKER PRO52 MAGNETIC BASE DRILL, MT2, CAP: 52MM DIA X 52MM

HOLEMAKER PRO52 MAGNETIC BASE DRILL, MT2, CAP: 52MM DIA X 52MM

Product Code: XHMPRO52-MT2

$2,899.00
$2,899.00
Sale Sold out

Low stock: 1 left
View full details
The Holemaker Pro52 magnetic base drill is equipped with cutting-edge technology and design, including a new rigid frame that extends the life of cutting tools. It also features an extra large 165mm stroke, allowing for the use of longer tooling and making it ideal for drilling box section steel in a single pass. The machine's Magnetic Field Shape Control (MFSC) provides unparalleled holding power on thin materials, while remaining lightweight and powerful compared to other brands on the market.

FEATURES

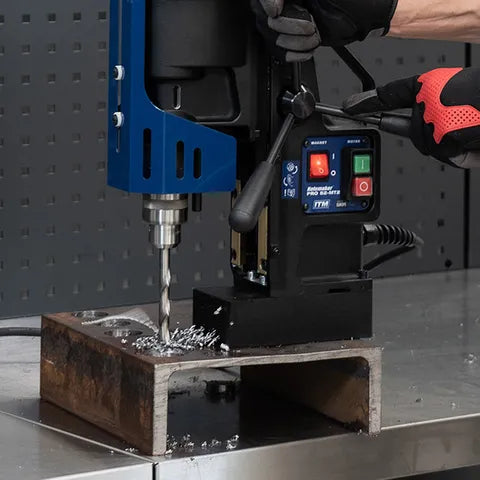

  • Multi-purpose machine able to use Holemaker cutters, no. 2 Morse taper shank drills & reamers, as well as a drill chuck
  • Industrial 2-speed gearbox
  • Cast-iron motor housing
  • Through spindle coolant system, with an external side mounted gravity feed coolant tank
  • Left or right hand feed handle operation
  • Unique semi-automatic gib adjustment system enables simple, fast and always correct fine tuning without any expert knowledge or experience
  • Smart magnet technology to ensure sufficient magnetic adhesion
  • Supplied in a blow mould plastic carry case
  • Suitable for steel fabrication, engineering workshops & maintenance facilities where a heavy-duty versatile machine is highly beneficial
  • Supplied complete with arbor for use with Holemaker cutters up to 50mm depth of cut (3/4" shank)

SPECIFICATIONS

  • Capacity (Diameter): 52mm
  • Capacity (Depth): 52mm
  • Capacity (Twist Drills): #2 Morse Taper 23mm
  • Motor Power: 1100 Watt
  • Input Power: 1200 Watt Single Phase 240V
  • Speed: 2 Speed 240 / 480rpm
  • Weight: 16.5kg
  • Magnetic Dead Lift: 9,900Nm On 25mm Steel Plate
  • Stroke: 165mm
  • Height (Min. / Max.): 456mm / 616mm

NOTE
DELIVERY TO CAPITAL CITIES ONLY.
THIS ITEM DOES NOT SHIP TO A PO BOX. MUST HAVE A ST ADDRESS.
Photos are for illustration purposes only
