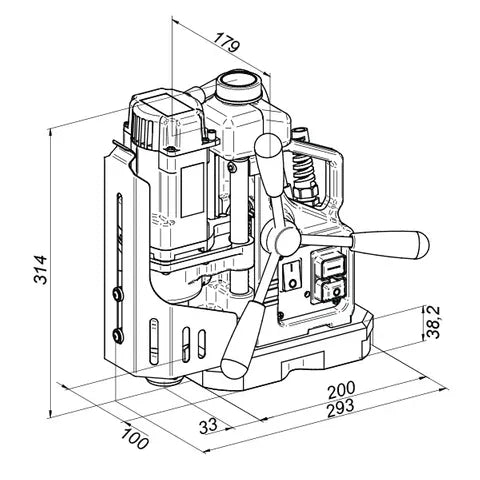

  • Black and white diagram of HOLEMAKER PRO35 MAGNETIC BASE DRILL, WITH SPECIAL 3MM MINIMUM WALL THICKNESS ELECTROMAGNET
1 2

East Coast Welding Supplies

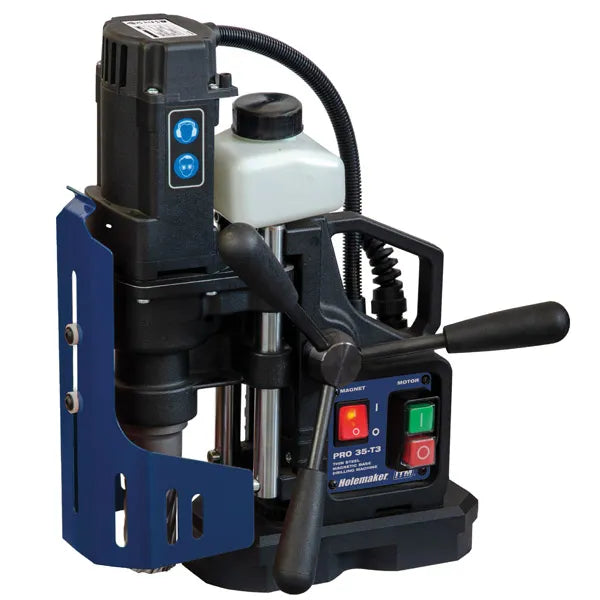

Holemaker Pro35 Magnetic Base Drill – 3mm Min Wall Thickness Electromagnet

Holemaker Pro35 Magnetic Base Drill – 3mm Min Wall Thickness Electromagnet

Product Code: XHMPRO35-T3

$2,239.00
$2,239.00
Sale Sold out

Low stock: 1 left
View full details
Thin material machine designed for workpieces as small as 3mm thick. Powerful electromagnetic base delivers exceptional adhesion even on minimal material thickness. European-engineered for quality, compactness and durability. Perfect for onsite and overhead drilling applications. Includes gravity feed coolant system with magnetic bottle attachment for convenient operation. Supplied complete in protective plastic carry case for easy transport and storage.

FEATURES

  • Thin material machine. Minimum 3mm workpiece thickness is required.
  • Powerful electromagnetic base allows strong adhesion to very thin workpiece thicknesses.
  • Quality, Compact & Robust European Made Machine.
  • Ideal for onsite & overhead tasks.
  • Gravity feed coolant system with magnetically attached bottle.
  • Comes complete in plastic carry case.



SPECIFICATIONS


  • Capacity ( Diameter ): 35mm
  • Capacity ( Depth ): 51mm
  • Motor Power: 920 Watt
  • Input Power: 1000 Watt Single Phase 240V
  • Speed: 350rpm
  • Magnetic Dead Lift: 9000Nm On 25mm Steel Plate
  • Stroke: 70mm
  • Height Min/Max: 314 / 384mm
  • Weight: 11kg



NOTE
DELIVERY TO CAPITAL CITIES ONLY.
THIS ITEM DOES NOT SHIP TO A PO BOX. MUST HAVE A ST ADDRESS.
Product Images are for illustration purposes only
