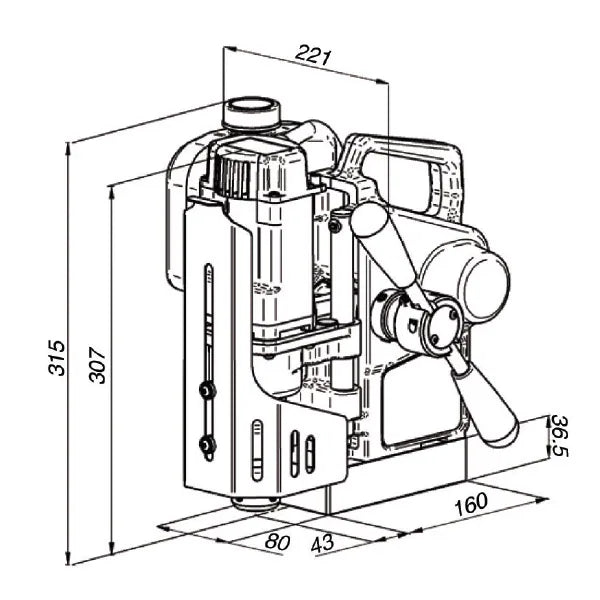

• “Holemaker Pro35 Automatic Feed Magnetic Base Drill – Dimensional drawing with front and side measurements

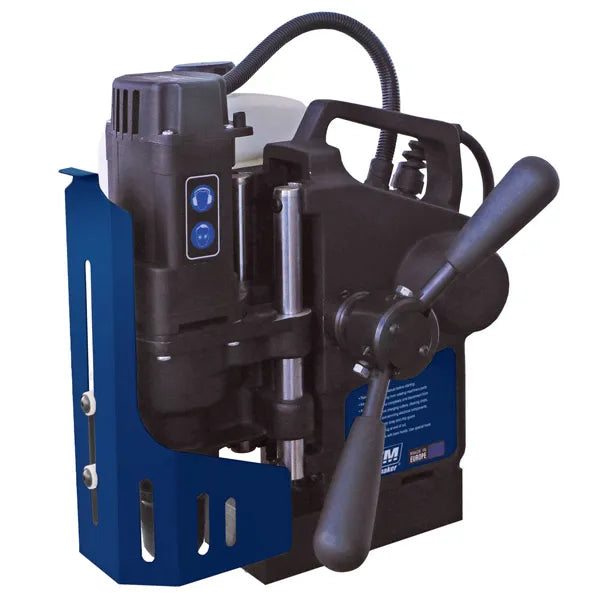

  • Holemaker Pro35 Automatic Feed Magnetic Base Drill – 920W 240V machine

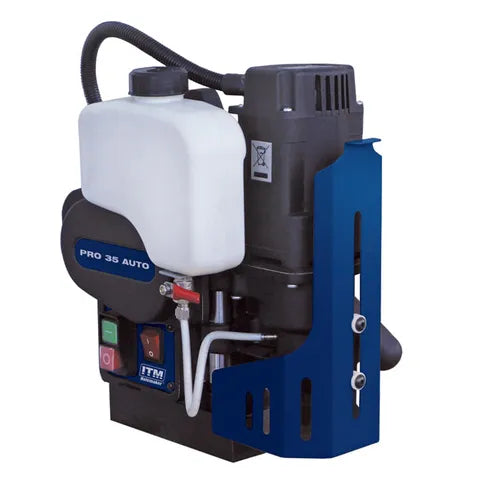

  • Holemaker Pro35 Automatic Feed Magnetic Base Drill – rear view with cutter guard
  • Holemaker Pro35 Automatic Feed Magnetic Base Drill – technical diagram showing 35mm capacity and 52mm depth
1 4

Holemaker

Holemaker Pro35 Automatic Feed Magnetic Base Drill – 240V, 35mm × 52mm

Holemaker Pro35 Automatic Feed Magnetic Base Drill – 240V, 35mm × 52mm

Product Code: XHMPRO35AUTO

$3,749.00
$3,749.00
Sale Sold out

Low stock: 1 left
View full details

The Holemaker Pro35 Automatic Feed Magnetic Base Drill is designed for repetitive hole-making in steel fabrication. Its automatic feed supports production drilling, with a cutter diameter capacity of 35mm and cutting depth of 52mm. The 240V single-phase machine features a dual rail slide system, through-spindle coolant delivery and an integrated cutter guard.

Features

  • Automatic feed for repetitive drilling tasks
  • Compact design with a listed product weight of 13.5kg
  • Dual rail slide system for machine rigidity
  • Smart control systems and smart magnet technology
  • Integrated cutter guard
  • Large-capacity coolant tank and through-spindle coolant system
  • Supplied in a metal carry case with cutter guard and safety strap

Specifications

Specification Details
Brand Holemaker
Model / Product code Pro35 Automatic Feed
Feed type Automatic
Cutter diameter capacity 35 mm
Cutting depth capacity 52 mm
Motor power 920 W
Input power 1000 W
Power supply 240 V single phase
Speed 350 rpm
Product weight 13.5 kg
Stroke 70 mm
Height 306 mm minimum / 376 mm maximum
Coolant system Through spindle
Included safety accessories Cutter guard and safety strap

NOTE
DELIVERY TO CAPITAL CITIES ONLY.
THIS ITEM DOES NOT SHIP TO A PO BOX. A STREET ADDRESS IS REQUIRED.
Product images are for illustration purposes only.
