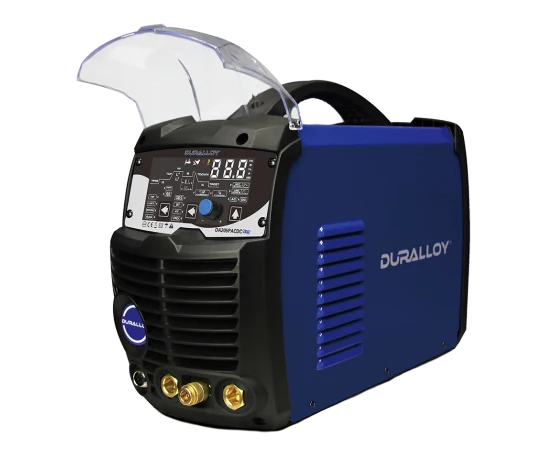

• Duralloy 205P AC/DC TIG Inverter Welder – 200A AC/DC TIG & MMA, 240V
1 1

Duralloy

Duralloy 205P AC/DC 240V TIG Inverter Welder (DA205PACDC)

Duralloy 205P AC/DC 240V TIG Inverter Welder (DA205PACDC)

Product Code: DA205PACDC

$0.00
$0.00
Sale Sold out

Low stock: 1 left
View full details

PLEASE CONTACT US FOR PRICE AND AVAILABILITY

The Duralloy 205P AC/DC is a 240V 10A AC/DC TIG inverter welder with full AC/DC capability, adjustable pulse parameters for thin material welding, and AC balance control (50–85%) for optimised aluminium cleaning and penetration. Generator-friendly from 10kVA, IP21S rated, and equipped with temperature, voltage and current sensors for enhanced protection.

FEATURES

  • AC/DC TIG technology — AC TIG, DC TIG (HF & Lift) and MMA
  • Adjustable pulse parameters — ideal for thin materials
  • AC balance control — 50–85%, monitors oxide levels for aluminium welding
  • Adjustable AC frequency control — 40–200Hz
  • Adjustable pre/post gas — post-flow 1–10s
  • Adjustable downslope — 0–5s
  • Foot control ready — optional extra
  • Generator-friendly — 10kVA
  • Industrial cable connectors — 35–50mm
  • Quick connect gas fitting
  • Protective front fascia cover
  • Automatic fan cooling
  • IP21S rated

APPLICATIONS

  • Maintenance and light fabrication
  • Automotive repairs
  • Rural applications
  • On-site fabrication
  • DIY

COMPATIBLE MATERIALS

  • Mild steel
  • Aluminium
  • Stainless steel

SPECIFICATIONS

Specification Detail
Model Duralloy 205P AC/DC
SKU DA205PACDC
Input Voltage 240V single phase / 10A
Frequency 50/60Hz
Welding Processes AC TIG, DC TIG (HF), DC TIG (Lift), TIG Pulse, MMA
AC TIG Output Range 10–200A
DC TIG (HF) Output Range 10–200A
DC TIG (Lift) Output Range 30–200A
AC TIG Duty Cycle (40°C) 200A @ 10% / 82A @ 60% / 63A @ 100%
DC TIG Duty Cycle (40°C) 180A @ 10% / 73A @ 60% / 57A @ 100%
AC Balance Control 50–85%
AC Frequency 40–200Hz
Post-Flow 1–10s
Downslope 0–5s
Generator Compatible Yes (10kVA)
Cable Connectors Industrial 35–50mm
Safety Features Temperature, voltage and current sensors
IP Rating IP21S
Insulation Class H
Cooling Automatic fan
Dimensions 475 x 185 x 325mm
Net Weight 8kg

PACKAGE INCLUDES

  • Power source
  • 8m current control WP17 TIG torch with accessories
  • 3m arc welding lead
  • 3m earth lead
  • 1.5m gas hose
  • Argon regulator
  • Owner's manual

NOTE

DELIVERY TO CAPITAL CITIES ONLY.
THIS ITEM DOES NOT SHIP TO PO BOXES. A STREET ADDRESS IS REQUIRED.
Product images are for illustration purposes only.
