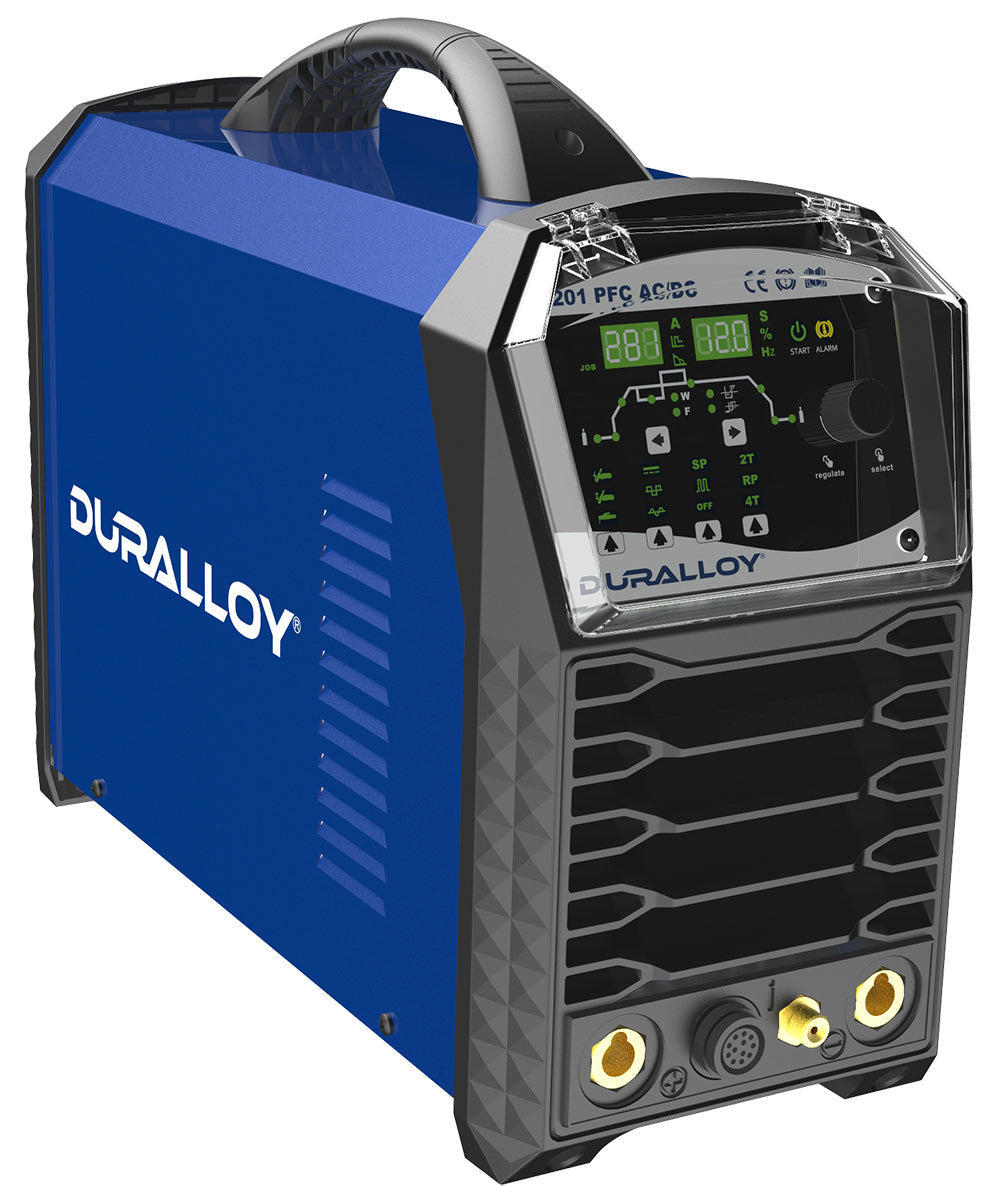

Duralloy 201 PFC 240V AC/DC HF Pulse Inverter TIG Welding Machine (DA201PFCACDC)

PLEASE CONTACT US FOR PRICE AND AVAILABILITY

The Duralloy 201 PFC is a 240V AC/DC HF pulse TIG inverter welder featuring PFC technology for maximum electrical efficiency and consistent weld output. With multi-waveform output (AC square, sine and triangular wave, plus DC), AC balance control for aluminium welding, and a 200A @ 60% duty cycle, it is a versatile and powerful choice for fabrication, maintenance and on-site work.

FEATURES

• AC/DC pulse TIG with selectable pulse time
• Multipurpose — MMA, Lift TIG and HF TIG
• PFC technology — maximum electrical efficiency and consistent weld output
• Multi-waveform output — AC square wave, AC sine wave, AC triangular wave, DC
• AC balance control — 50–85%, improves cleaning action during aluminium welding
• High duty cycle — 200A @ 60% (TIG, 240V)
• Selectable pre/post flow time
• Selectable up/down slope time
• Quick connect gas fittings
• Protective front fascia cover
• Industrial cable connections — 35–50mm
• IP23 rated
• Weight: 15kg

APPLICATIONS

• Maintenance
• General fabrication
• Stainless steel fabrication
• On-site fabrication

COMPATIBLE MATERIALS

• Mild steel
• Stainless steel
• Aluminium
• Copper

SPECIFICATIONS

PACKAGE INCLUDES

• Power source
• 8m current control flexi neck TIG torch
• 1.5m gas hose
• 3m earth lead
• 3m MMA lead
• Argon regulator

NOTE

DELIVERY TO CAPITAL CITIES ONLY.
THIS ITEM DOES NOT SHIP TO PO BOXES. A STREET ADDRESS IS REQUIRED.
Product images are for illustration purposes only.
