Duralloy 200A DC Pulse TIG/MMA Welder with PFC DA200PFCDC

PLEASE CONTACT US FOR PRICE AND AVAILABILITY

The Duralloy 200A DC Pulse TIG/MMA Welder is a professional 200 A DC TIG and MMA inverter designed for precise welding of carbon steel, stainless steel and other compatible metals. Advanced SiC inverter technology provides efficient power delivery, stable arc performance and precise control in a compact, portable machine.

FEATURES

• 200 A DC TIG and MMA welding output
• Advanced SiC inverter technology — cooler, more efficient than conventional IGBT
• Power Factor Correction (PFC) greater than 0.99 for efficient power usage
• Multi-voltage operation — 110 V and 240 V
• 240 V single-phase operation with a 15 A plug
• HF start and Lift TIG starting modes for flexible arc starting
• Adjustable pulse TIG frequency — 0.5 to 999 Hz
• Adjustable pulse width — 5 to 95%
• DC TIG spot-welding mode
• 2T and 4T trigger operation
• Ten job-memory programs for quick recall of frequently used settings

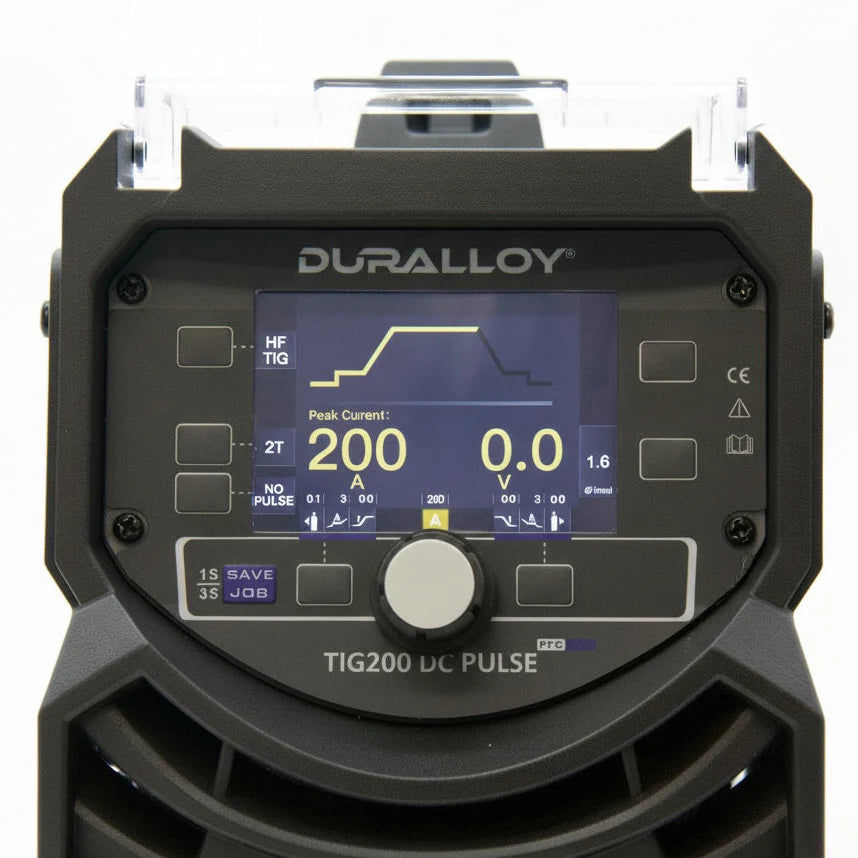

• Digital LCD control display
• DC MMA capability for added versatility
• IP21S protection rating
• Compact and portable design — approximately 7.8 kg
• Generator compatible
• Extension lead compatible — up to 100 m using 2.5 mm² or heavier cable

APPLICATIONS

• Professional DC TIG welding
• Carbon steel fabrication
• Stainless steel fabrication
• Precision pulse TIG welding
• Sheet metal and thin-material welding
• Workshop, maintenance and on-site welding
• DC MMA welding applications

SPECIFICATIONS

PACKAGE INCLUDES

• Duralloy 200A DC Pulse TIG/MMA power source
• 8 m 26 TIG torch with current control
• 3 m earth lead
• Argon regulator
• 1.5 m gas hose
• Owner’s manual

NOTE

DELIVERY TO CAPITAL CITIES ONLY.
THIS ITEM DOES NOT SHIP TO PO BOXES. A STREET ADDRESS IS REQUIRED.
Product images are for illustration purposes only.
